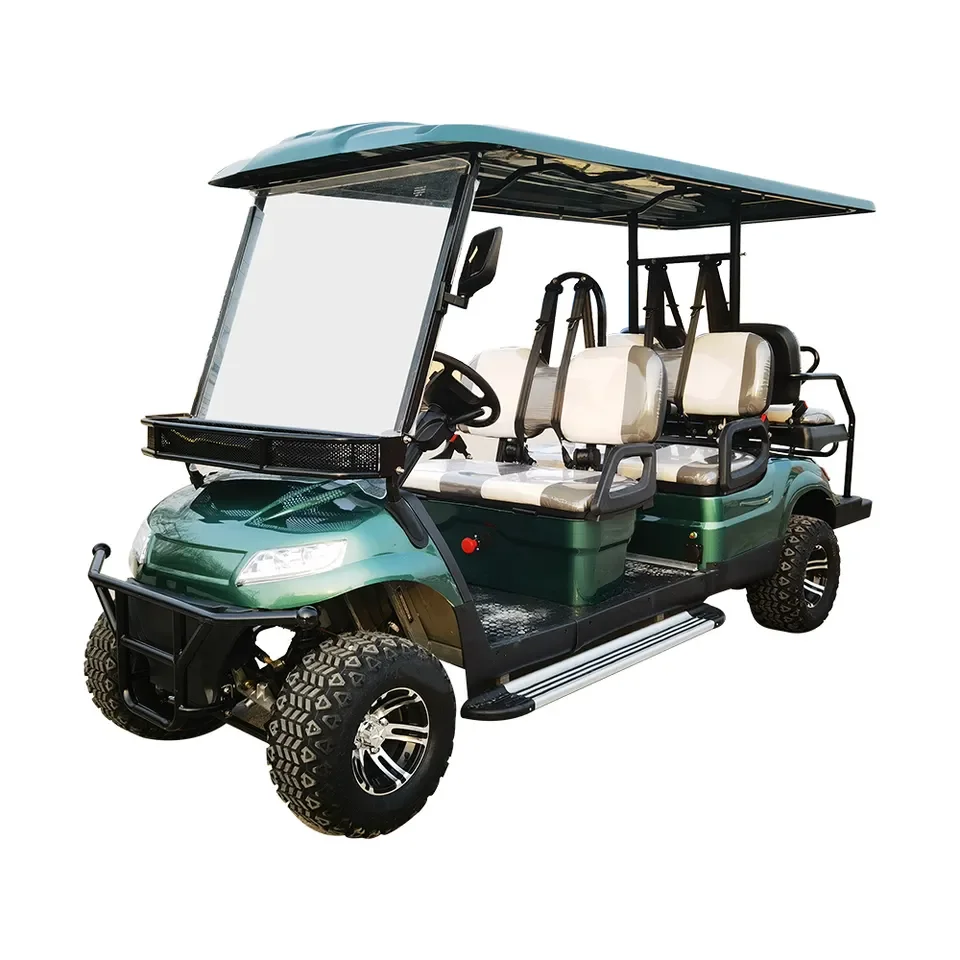

This well-designed, high-performance golf cart provides a comfortable journey for your passengers. With a high-capacity electric motor and a range of 110 km, it is ideal for short-distance transportation and riding around.
Battery |
48V 150Ah Lead Acid Battery |
Overall Size |
about 3550*1200*1850mm |
Motor |
48V AC 3.5KW KDS Motor |
Max Load |
about 400 kgs |
Controller |
48V/350A AC Controller |
Net Weight |
about 550 kgs |
Charger |
220V Vehicle-mounted intelligent charger |
Chassis And Frame |
Aluminium Alloy |
Suspension |
Front double cross arm independent suspension/rear leaf spring suspension |
Wheel Base |
about 2430mm |
Steering |
Self Compensating" Rack & Pinion" Steering |
Tire Size |
23*10-14 |
Brake |
Rear wheel Mechanical Drum Brake &Mechanical parking |
Ground Clearance |
about 150mm |
Passenger Capacity |
6 Passengers |
Brake Distance |
about 5 m |
Driving Distance |
about 80 km |
Miniumum Turning Radius |
about 4.35 m |
Max Speed |
about 30 km/h |
Max Climbing |
about 20% |
